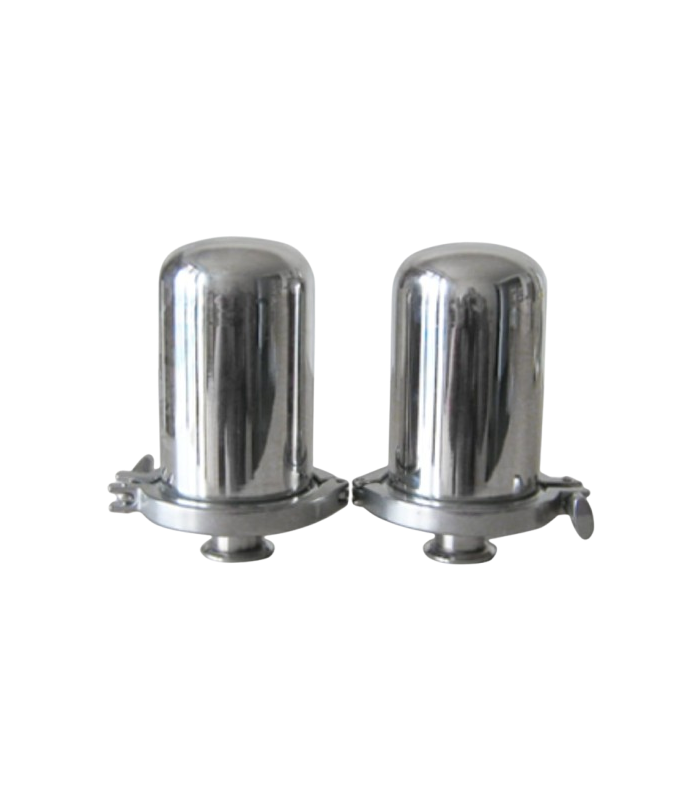

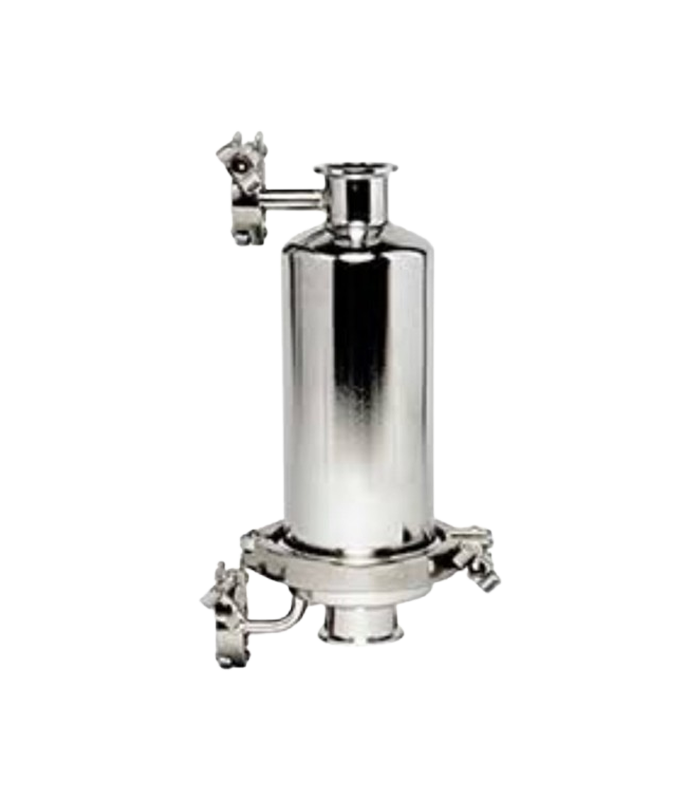

STAINLESS STEEL SANITARY

INLINE CARTRIDGE FILTER HOUSING

Stainless Steel Sanitary Sanitary Inline Filter Housing is manufactured from high quality steel suitable for Liquid/Gas/Air Filtration Applications in Pharma, Chemical and Cosmetic Industries. The filter housing holds the cartridge filter, which traps the particles of various sizes.it plays a vital role in removing contaminants and impurities from liquids and gases.

Technical Specifications

  • Application: Liquid/Gas Filtration In Pharma, Chemical and Cosmetic Industries
  • Diameter: 2” TO 4” OD
  • Length: 2.5”, 5”, 10”, 20”, 30” Long
  • MOC: SS 316/SS 316L/SS 304
  • Cartridge Code: CD-7, CD0, CD-DOE, Threaded, Optiseal, Sealkleen
  • Finish: 240 Grit Mirror Or Electroplolish ≤ 04 RA
  • Max Operating Pressure: Differential 7.0 KG/CM²
  • End Connection: Tri Clover Connection with Ball Valve
  • Gasket/”O” Ring MOC: Silicone, Neoprene, Viton, PTFE
  • Temprature Setting: 80-85 °C
  • Speical Option: Steam Jacket, Electric Jacket/PVDF or Halar Coating
