STAINLESS STEEL SANITARY

Pharmaceutical Vessels

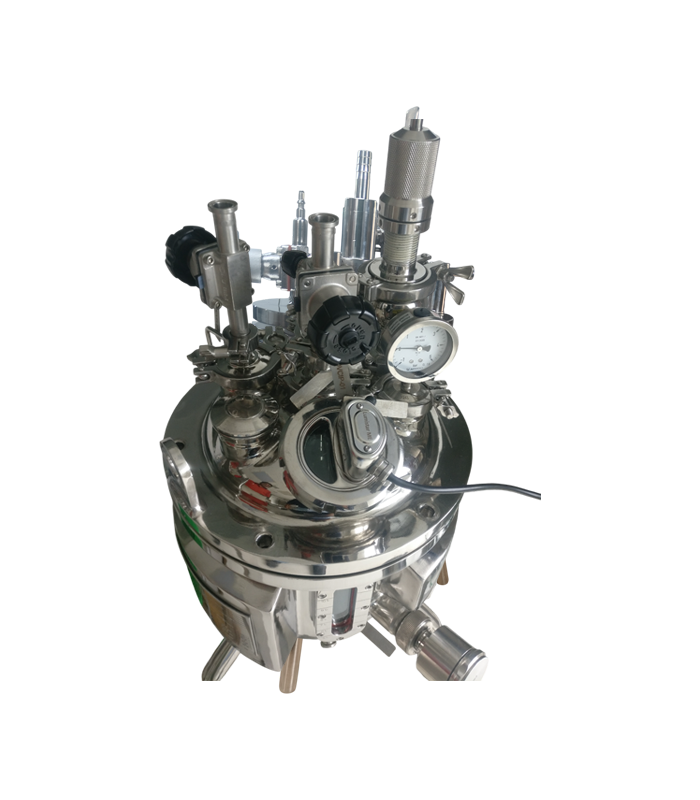

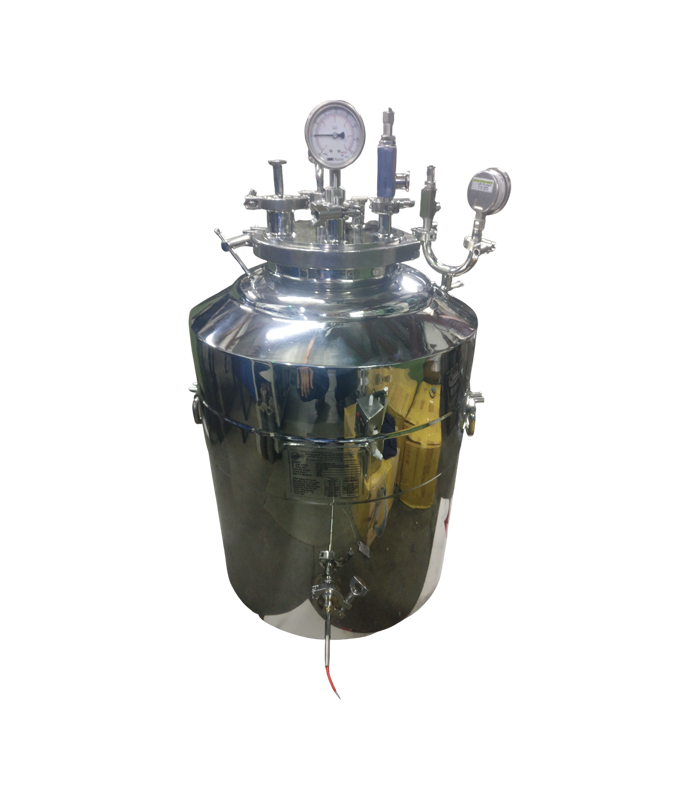

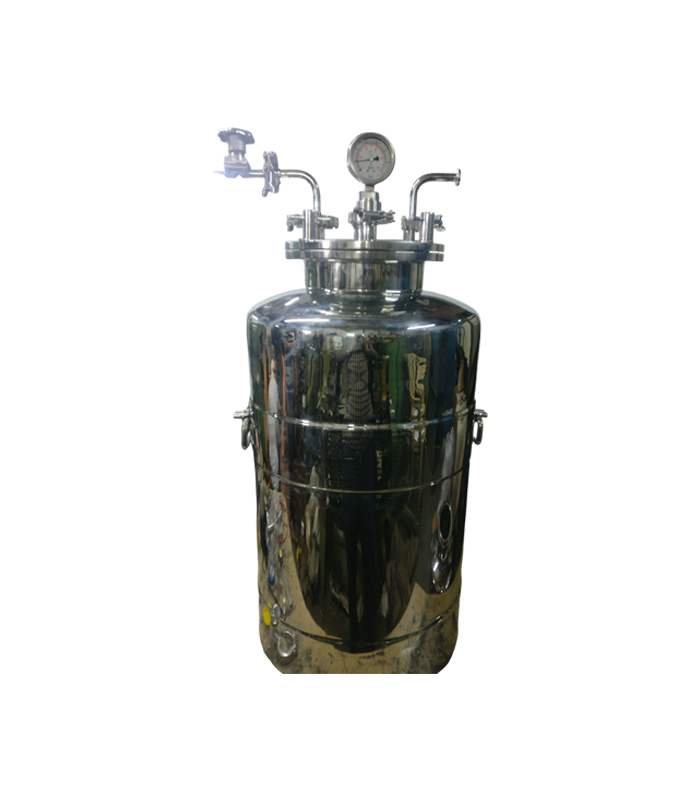

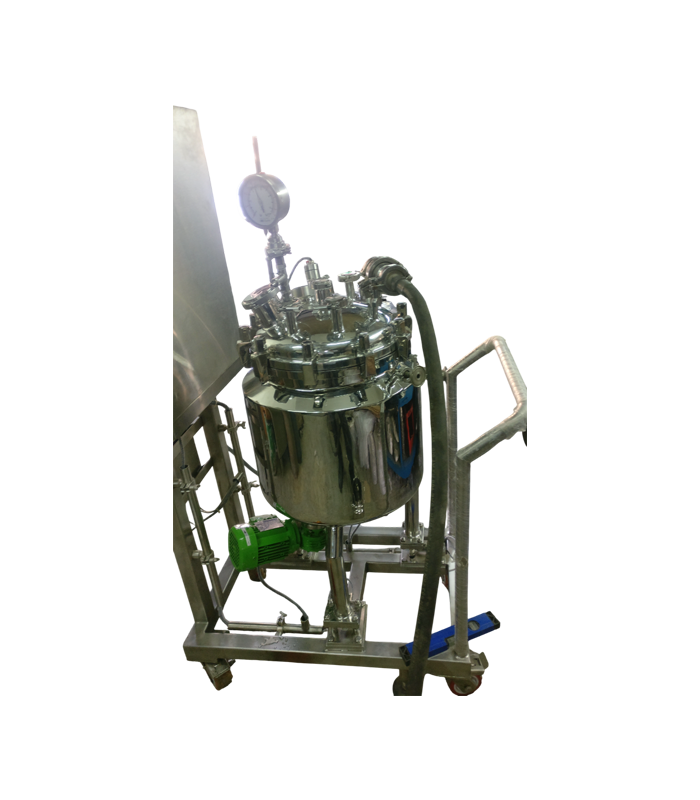

Pharmaceutical Stainless Steel Pressure Vessels are used in Pharmaceutical, Chemical, Cosmetic companies where the liquid is a component in the manufacturing or storage process. Examples of such departments include Oral Liquid, Parenteral, Opthologie, Injectable, API etc.

Technical Specifications

  • Application: Parenteral Product, Oral Liquid Manufacturing, Pharma Water Systems
  • Capacity: 5 Lit To 1000 Lit
  • Connection: As per client’s requirements
  • MOC: SS 316L/SS 304
  • Operating Pressure: 10 KG/CM²
  • Finish: 240 Grit Mirror Or Electroplolish ≤ 04 RA
  • Optional: Agitator, Pressure Gauge, Air On/Off Valve, Flush Bottom Valve, Jacket etc.

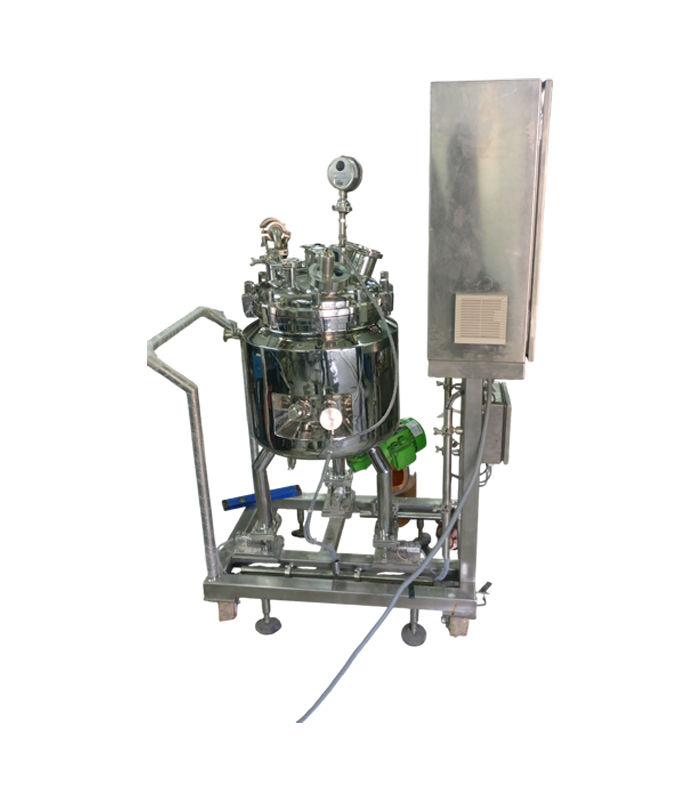

Manufacturing Vessel

These vessels contains high pressure applied inside vessel to manufacturing or transfer process to prevent over pressurizing of the pressure vessel the safety valve is provided rated at the same value as the vessels maximum operating pressure.

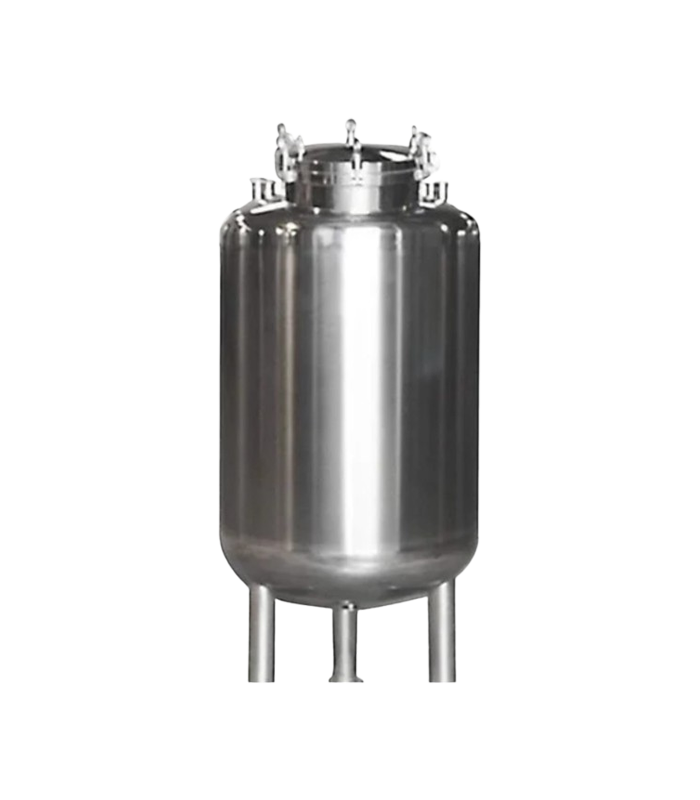

Holding/Storage Vessel

These vessels are used to store product in between two processes like sampling process or in between manufacturing and filling. Also, storage vessel is to store purified or distilled water before distribution.

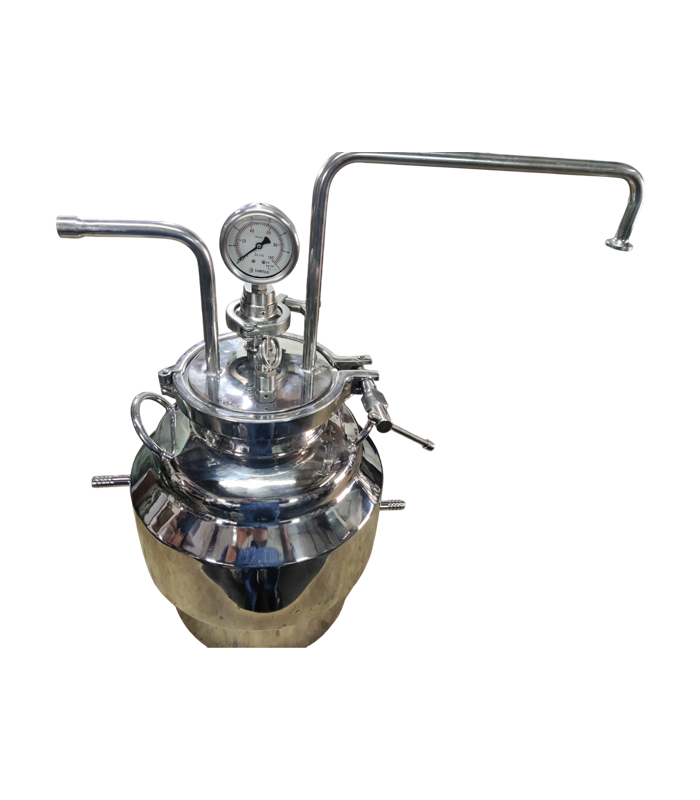

Pressure Vessel

These vessels contains high pressure applied inside vessel to manufacturing or transfer process to prevent over pressurizing of the pressure vessel the safety valve is provided rated at the same value as the vessels maximum operating pressure.
